APPLICATIONS AND MAIN FEATURES

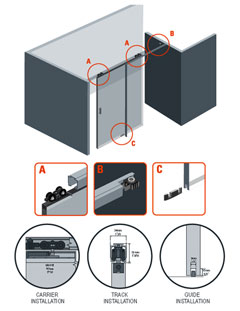

Top sliding system for doors installed inlay the opening and traveling inline. Frontal installation of the carrier.
Ideal for partitions and applications where minimizing the gap between door and track is a must. With only 1/8” gap,
the DN 80 Conceal is your choice.
Installation of 2 tracks U21 in parallel allows for 2 doors traveling in bypass.
One box with all you need to install 1 door, just order the track and you are ready to go.
Ball bearing high quality rollers for a silent and smooth glide.
176 lbs max weight per door.
Stoppers with retention device installed inside the track will stop and retain the door in position.
U21 aluminum track for a silent glide.
Fascia for U21 track (accessory) will easily install with a snap providing an elegant finishing.
Bracket for U21 track (accessory) will allow the installation of the track to the wall, avoiding the need of
structural modifications in your room.

176 lbs

80 Kg
